Casa > Productos > camión eléctrico 1T EEC

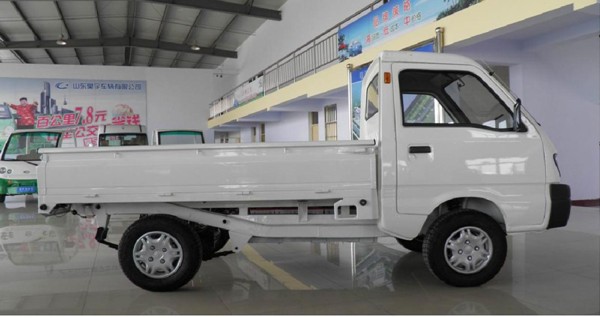

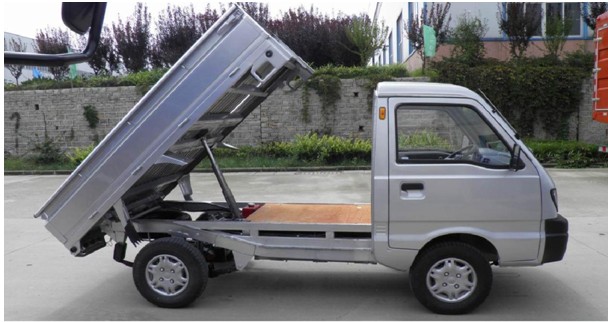

camión eléctrico 1T EEC

Main Technical parameter of Electric Truck
Overall Dimension（LxWxH） 　 3590x1450x1715mm
Cargo Body Dimension （LxWxH） 　 2120x1320x330mm
Wheel Base 　 2000mm
Front Track 　 1230mm
Rear Track 　 1240mm
Curb Weight 　 910kg
Payload 　 1000kg max.
Rated Passengers 　 2
Speed max. 　 55km/h max.
Gradeability max. 　 0.2
Range（uniform speed at 25km/h）ambient temperature above 10 degree) 　 120km   (After   10   times   of batteries recharging)
Rated Voltage 　 60v
Charging Time 　 6-8 hourswith 220V
Battery 　 6v/180Ah x 10units,Gel
Trafficability TurningRadius 5000mm min.
　 Clearance min. 150mm min.
　 Brake Distance 4000mm max.
Motor Model DC motor
　 Specification 60v/4kw
Front Suspension Model Independent,McPherson type
　 Spring Element Coil spring
Rear Suspension Model Non-Independent suspension
　 Spring Element Leaf Spring
Tire Specification 155/70R12
　 Tire Pressure 220kpa (front wheel)
　 　 220kpa (rear wheel)
Rear Axle Track 1240mm
　 Reduction Ratio 6
Brake System Brake Type hydraulic brake
　 　 Rear  wheel  braked  mechanically by steel rope
Body Structure Integral, welding structure of steel body
Capacity Parameter of Electric System 　
Item Specification & Parameter
Combination Head Lamp 60/55W(high beam)/55W(low beam)
Lamp (Front) Front Position 12V,5W
　 Front Turning 12V,10W
Front Fog Lamp 　 12V,55W
Combination Lamp (Rear) Braking Lamp/Rear Position 12V,21W/5W
　 Reversing Lamp 12V,21W
　 Rear Turning Lamp

12V,21W
