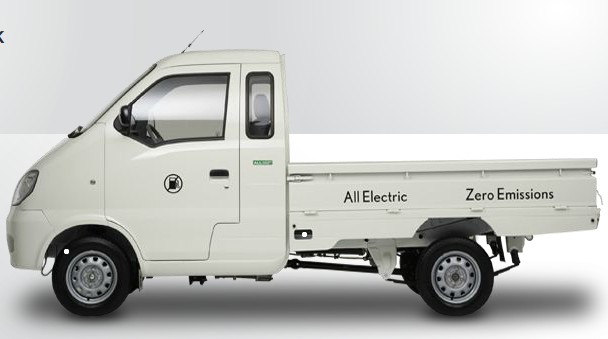

camión eléctrico EA-40

Main Technical Parameter
Key Specifications
Dimension 13'6''×4'11''×'‘2''
Estimated Range 30-40miles
Seat 2
GVWR 3000lbs
Max speed 25mph
Acceleration 0-20mph in 5sec
Braking Distance 26ft
Wheelbase 8'7''
Cargo capacity 7'5''×4'6''×1'1''
Battery System
Type Advanxed sealed,absorbed glass mat,
valve regulated,maintenance free lead-acid
Capacity 150AH
Est.Battery Life 25000miles
Number of Batteries 6
Aux.Battery Type 12V
Motor
Type Brushless 3Phase induction AC motor
Rated/Peak Power 7.5kw/26kw
Rated voltage 72kw
Max.Torque 115ft-lbs
Charger
Charging Time 4-6hours(50%to full)
AC Input Range 110+ -15%
Max.Charging Current 12A
Max.output Power 1000w
Controller
Rated voltage 72V
Rayed Current 550A
The miles EA-40 exceeds requirements of the NHTSA standard 500 regulation
